Who can use this feature:
This article is for Editor v4 users. If you’re using Editor v3, check out the relevant article here: Advanced tab
Adding a box shadow to your element can give it depth and allows the element to stand out on the page. For a more in depth look at shadows, see What is Shadow, Text Shadow and Boxed Shadow?
Add a box shadow to an element
To add a border:
- Open the Elementor Editor.

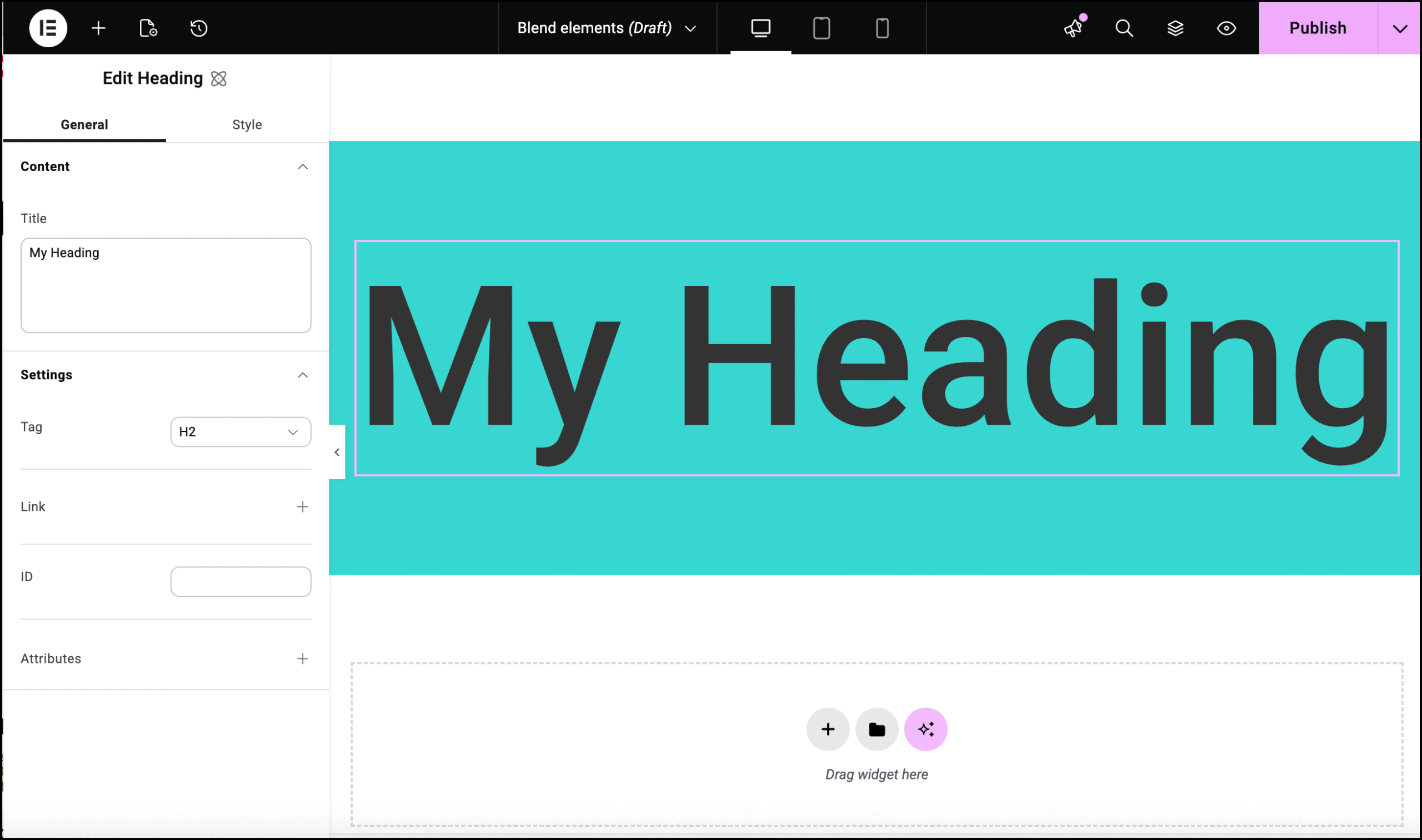

- Add an element to the canvas.

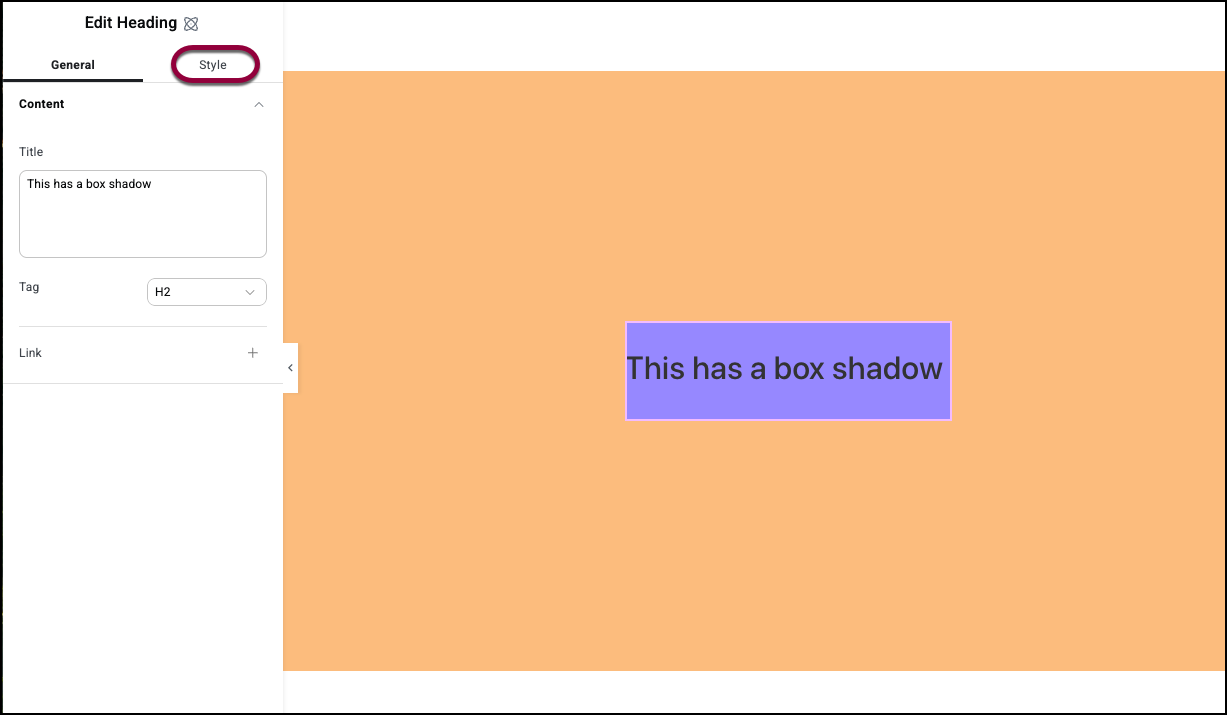

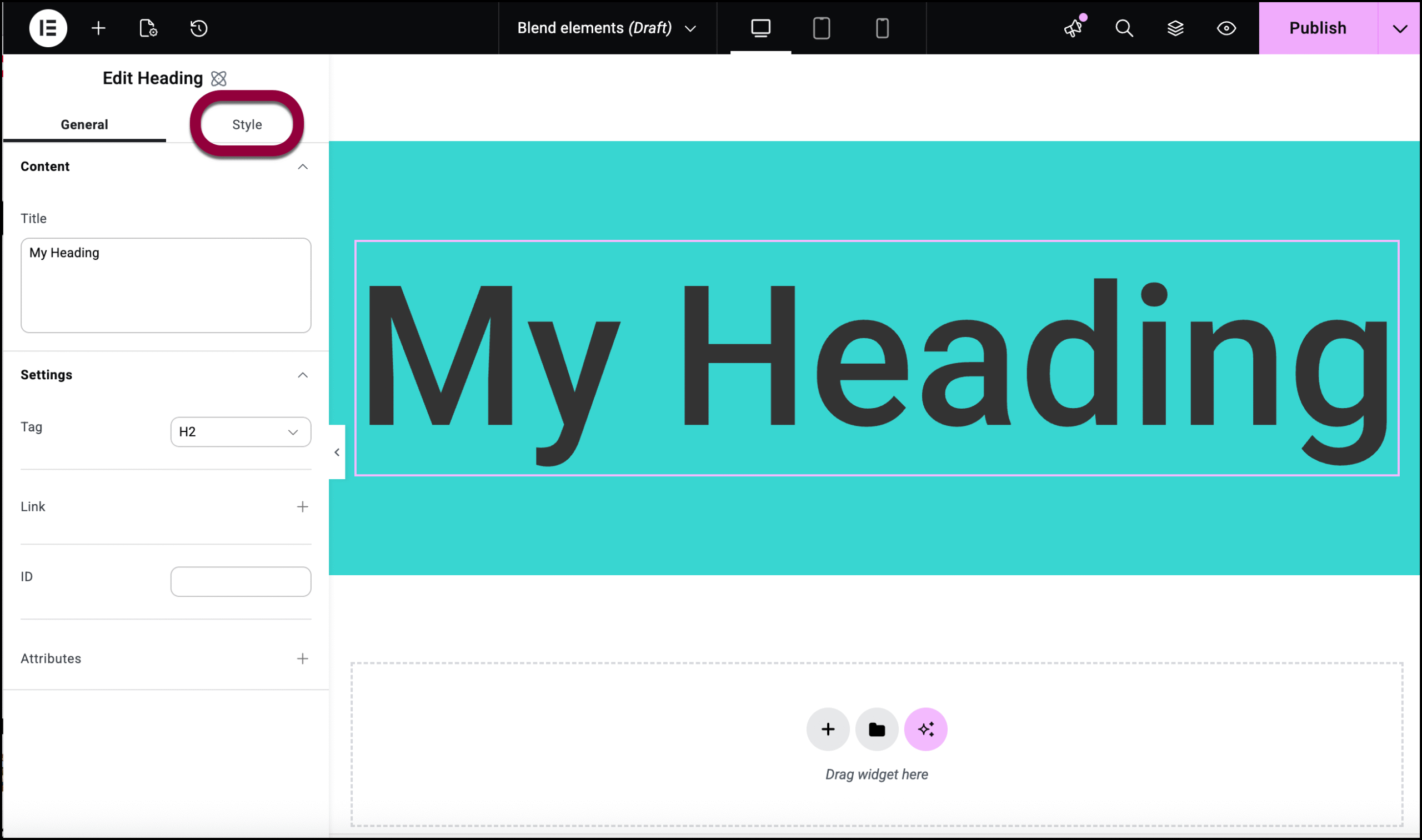

- Click the Style tab.

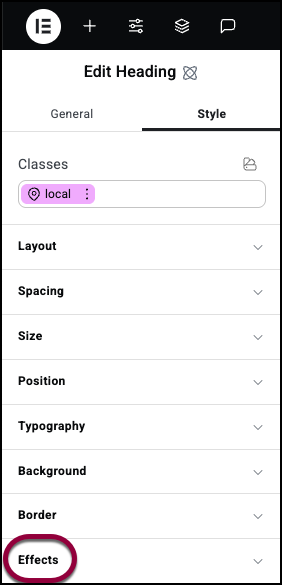

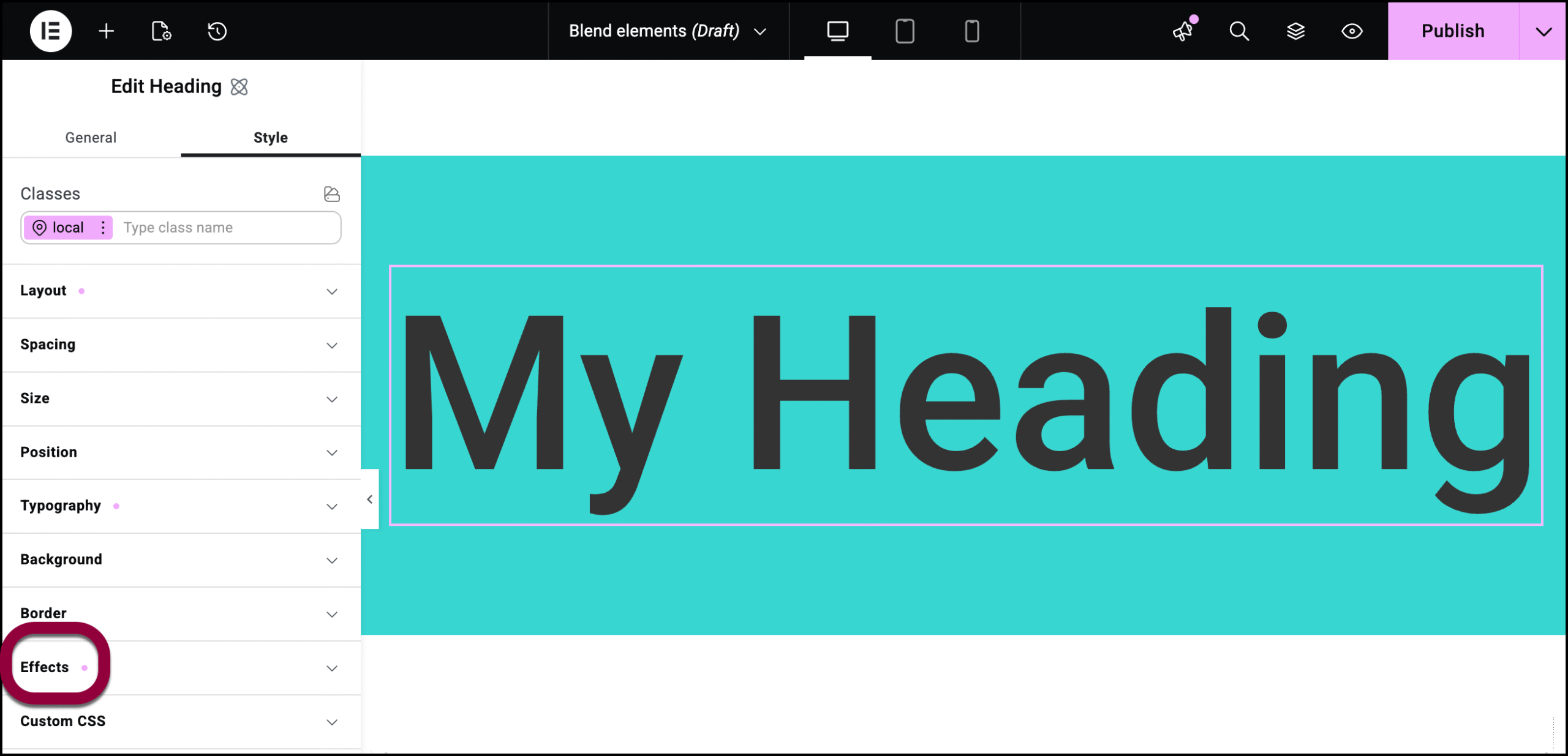

- Open the Effects field.

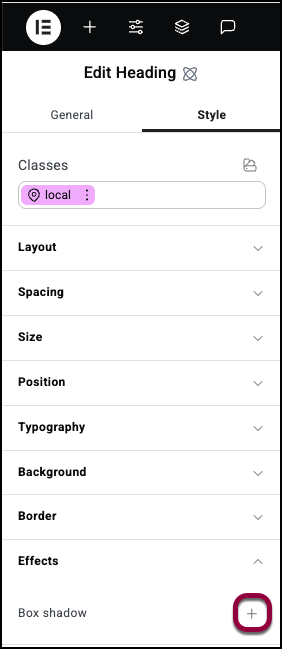

- To add a shadow, click the plus sign next to Box shadow.

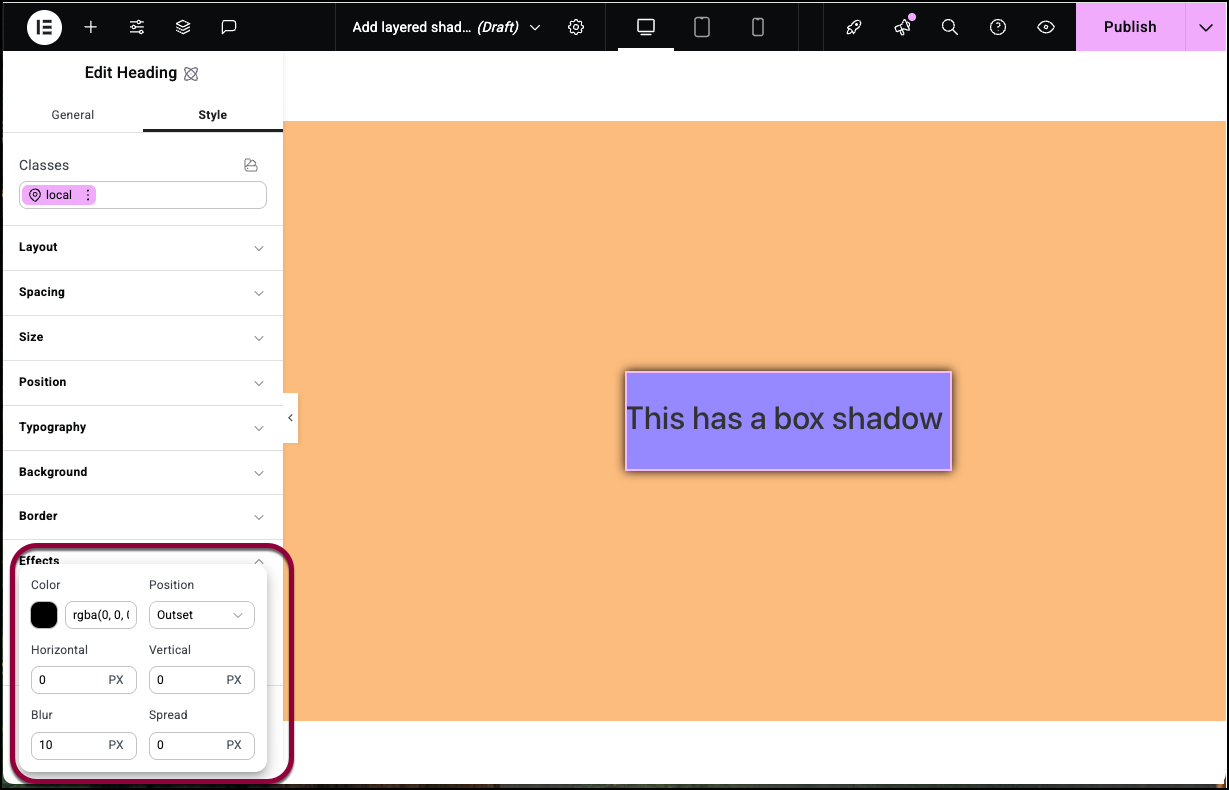

- You then have the following options:
- Color: Set a color for the shadow. For details, see Use the color picker.
- Position: There are two types of box shadow:
- Outset: the shadow starts at the element border and flows outward.
- Inset: The shadow starts at the element border and flows inward.
- Horizontal and Vertical: You can achieve interesting effects by changing the position of the shadow. Use the number fields to move the shadow right and left (Horizontal) or up and down (Vertical).
- Blur and Spread: The shadow effect is caused by starting with a solid color and then increasingly blurring the color.
- Blur: Expands the area covered by the blurred color.
- Spread: Expands the area covered by the solid color.
Add layers to your box shadow
After creating a box shadow, you can add more depth or create unique effects by adding more layers to the shadow.
To add a layer to a box shadow:
- Select an element with a box shadow and open the Effects field.

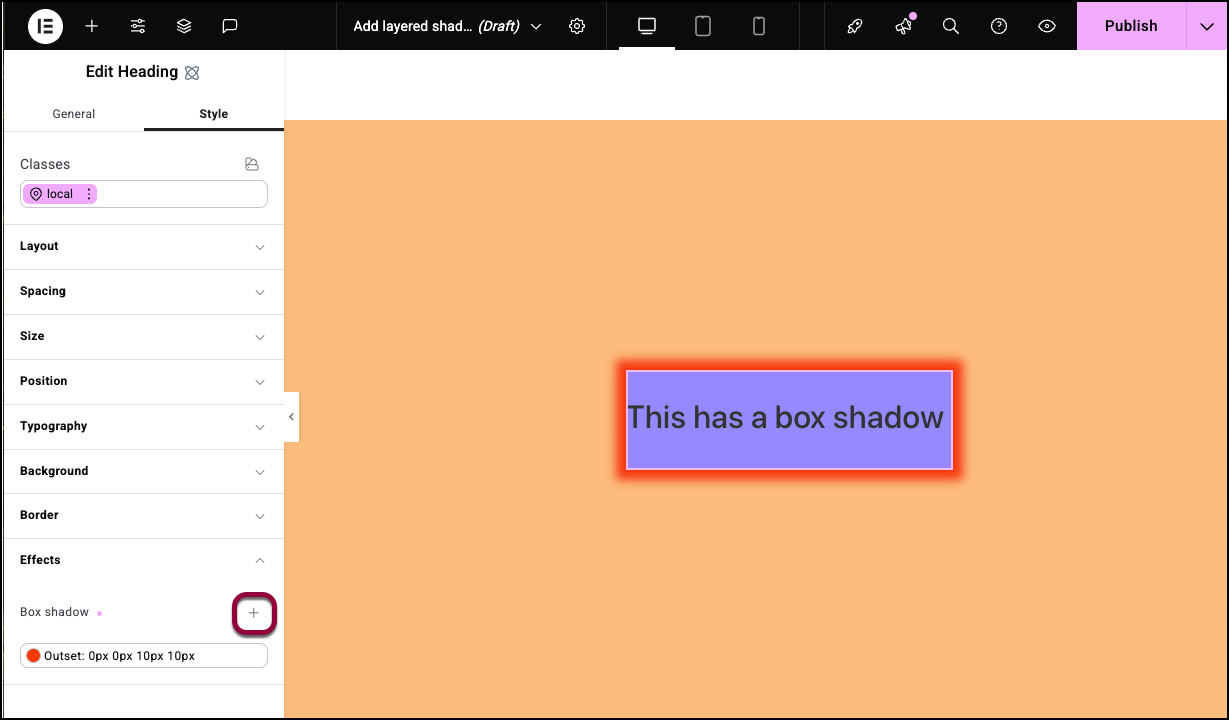

- Click the plus sign by Box shadow.

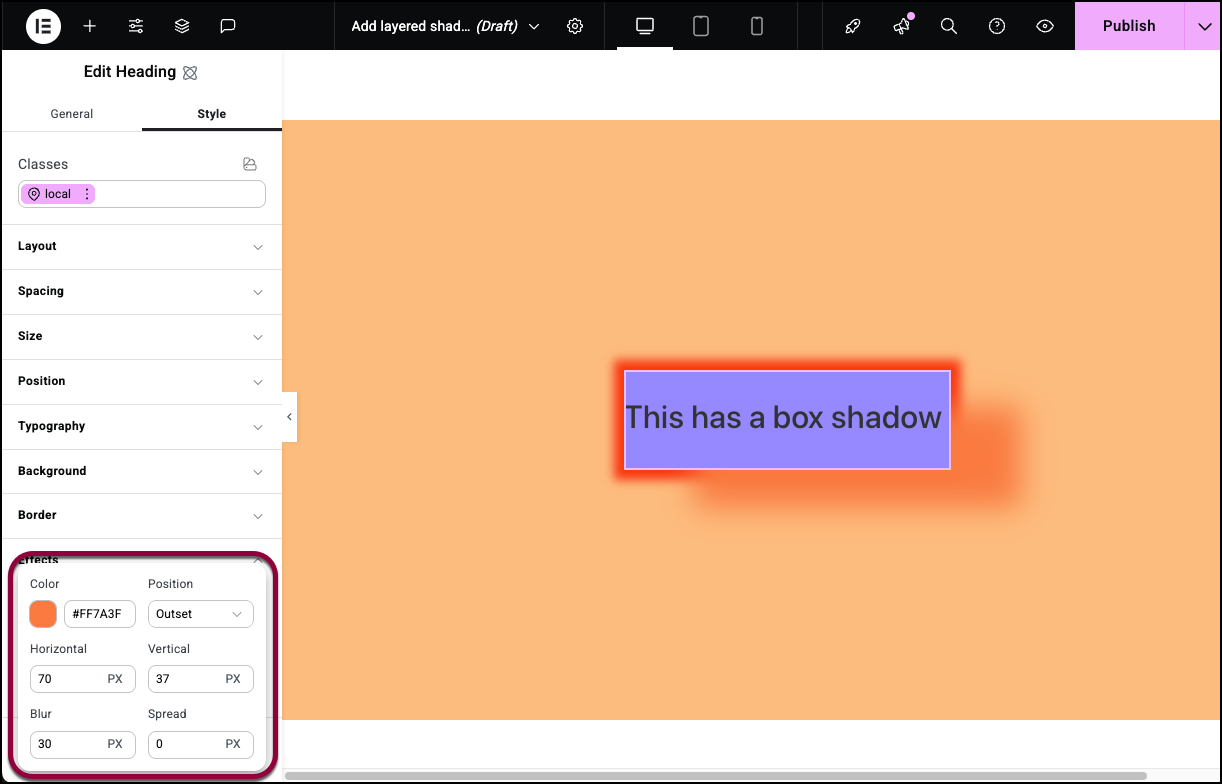

The box shadow options window appears. - Set the box shadow options and click outside the box to close the window.
You created a second layer of box shadow.
